DFAC 140-160HP Swing Arm Container Garbage Truck

Get Latest Price

Payment Type:

L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash

Incoterm:

FOB,CFR,CIF,FCA,CPT,CIP,DAF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: CLW5100ZBST4

Brand: CLW GROUP TRUCK

Supply Ability & Additional Information

Packaging: waxed

Productivity: 120 sets per week

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 12000 Sets per year

Certificate: CCC ISO

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash

Incoterm: FOB,CFR,CIF,FCA,CPT,CIP,DAF

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: waxed

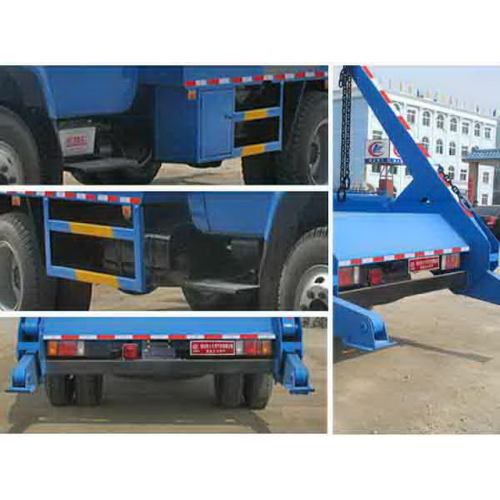

DFAC 140-160HP Swing Arm Container Garbage Truck

Garbage truck for sale,dumping type garbge truck,garbage truck price,swing arm garbage truck for sale,DFAC garbge trucks

Vehicle Features:

1. DONGFENG high quality chassis, 4X2 drive type, LHD/RHD

2. Yuchai 140-160hp engine, Euro 4 emission standard

3. Easy operation, high working efficiency

4. CCC ISO BV approved, accept customization service.

Production enterprise information
Vehicle name:	DFAC 140-160HP Swing Arm Container Garbage Truck	Vehicle type:	Special vehicleLaws and regulations
Manufacturing place:	China	Type of licence:	The vehicle license plate classification standard
Announcement batch:	275	Release date:	20150812
product ID:	ZJXW84WP041	Directory number:	(Seventeen)74
Chinese brand:	CLW GROUP TRUCK	English brand:
Announcement type:	CLW5100ZBST4	Exempt from:	yes
Enterprise name:	CLW GROUP TRUCK	fuel:	no
Business address:	The southern suburbs of Hubei Province, Suizhou city Zengdou District Chengli Automobile Industry Park	environmental protection:	no
Inspection instructions
Exemption:	no	Check the inspection period:
Announcement status
Announcement status:	effective	Effective date of announcement:	20150812
Announcement state description:	change	change(extend)Record:
Main technical parameters
Outline dimension:	718524703300(mm)	Cargo compartment size:	* *(mm)
Total mass:	10490(Kg)	Load quality utilization factor:	0
curb weight:	5795(Kg)	Rated load quality:	4500(Kg)
Trailer quality:	(kg)	Semitrailer saddle:
Cab:		Front passenger:	3(people)
Rated capacity:	(people)	Anti lock braking system:	nothing
Approach angle/Departure angle:	34/17(DEG)	The front suspension/Rear overhang:	1065/2170(mm)
Axle load:	4000/6490	Wheelbase:	3950(mm)
Axis number:	2	Maximum speed:	90(km/h)
Oil consumption:	19.9,20.3,20.4,20.4	Spring sheet number:	9/12+9
Tyre number:	6	Tire specifications:	9.00-20 12PR,9.00R20 12PR
Front track:	1810	Rear wheel:	1800
Brake front:		After braking:
Before system operation:		After the operation of the system:
Steering form:	Steering wheel	Starting method:
drive system:		Oil consumption(L/100Km):	19.9,20.3,20.4,20.4
VinVehicle identification code:	LGHWAD1HX x x x x x x x x x x x LGHWAG1HX x x x x x x x x x x xLaws and regulations
Engine parameters
Engine	Engine production enterprise	displacement(ml)	power(kw)
YC4E140-42 YC4E160-42 YC6J160-46 ISB3.9-160E40A	Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd.	4260 4260 6494 3900	103 118 118 116
Vehicle fuel parameters
Fuel type:	diesel oil	Based on standard:
Chassis emission standard:	GB17691-2005China IV,GB3847-2005
Other
Protective material:Q235Acarbon steel,Connection mode:The left and right sides and the rear lower part are protected by welding connection,Rear section size(mm):120505,Rear protection height(mm):500.
Reflective marking parameters
Marking enterprise:	CLW GROUP TRUCK	Logo mark:	CLW GROUP TRUCK
Identification model:	TM1200-1,HW1400

EQ1100FLJ8Chassis parameters

Dongfeng truck chassis|Dongfeng brandEQ1100FLJ8Truck chassisDetailed parameters

Enterprise name:

Dongfeng Motor Corporation

Chassis Model:

EQ1100FLJ8

Chassis class:

Two

Product name:

Truck chassis

Product trademark:

Dongfeng brand

Zip code:

430056

Directory number:

Specifications:

long:6800 wide:2364 high:2370

Fuel type:

diesel oil

Based on standard:

GB17691-2005China IV,GB3847-2005

Steering form:

Steering wheel

Axis number:

Wheelbase:

3950

Spring sheet number:

9/12+9

Tyre number:

Tire specifications:

9.00-20 12PR,9.00R20 12PR

Tread:

Front track 1810 Rear wheel 1800

Total mass:

10490

curb weight:

3600

Trailer quality:

Semitrailer saddle:

Front passenger:

3,2

Close to the left corner:

34/30

Front suspension rear suspension:

1065/1785,1170/1680

Maximum speed:

90,80

picture:

Dongfeng truck chassis\|Dongfeng brandEQ1100FLJ8Truck chassisEngine detail parameters
Engine model	Engine production enterprise	displacement(ML)	power(ML)
YC4E140-42 YC4E160-42 YC6J160-46 ISB3.9-160E40A	Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd.	4260 4260 6494 3900	103 118 118 116
Identification code:	LGHWAD1HX x x x x x x x x x x x LGHWAG1HX x x x x x x x x x x x
Other:	1.The optional front exhaust pipe;Optional speed limiting device,Speed limit80km/h, Optional disc brake device,OptionalABS,Model for3631010-C2000,Manufacturer of Dongfeng electronic Polytron Technologies Inc brake system company;2.Net rate:YC4E140-42by98kw,YC4E160-42by113kw,YC6J160-46by109kw,ISB3.9-160E40Aby112kw. 3.Optional new lighting,mask,Bumper,Door form.
