YUEJIN 6CBM Compression Rubbish Truck

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash
Incoterm:
FOB,CFR,CIF,FCA,CPT,CIP,DAF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.CLW5060ZYSN4

BrandCLW GROUP TRUCK

Supply Ability & Additional Information

Packagingwaxed

Productivity120 sets per week

TransportationOcean,Land

Place of OriginChina

Supply Ability12000 Sets per year

CertificateCCC ISO

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash

IncotermFOB,CFR,CIF,FCA,CPT,CIP,DAF

Packaging & Delivery
Selling Units:
Set/Sets
Package Type:
waxed

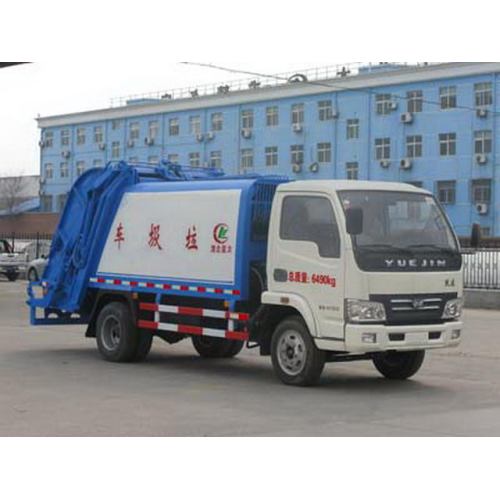

YUEJIN 6CBM Compression Rubbish Truck

YUEJIN high quality chassis 4X2 drive LHD/RHD

Chaoyang Diesel Engine 100HP Euro 3 emission standard

Load capacity:6CBM
CCC ISO BV approved, accept customization service.





Why choose us?!





1.We offer individual needs of
vehicles, customized according to your needs.





2. Our products have lower
prices and better quality.





3. Our delivery time is very short.





4. We offer a variety of shiping
methods and payment methods.





5. We focused on product
use and care of private advisory services.





Production enterprise information
Vehicle name: YUEJIN 6CBM Compression Rubbish Truck Vehicle type: Special vehicleLaws and regulations
Manufacturing place: China Type of licence:

The vehicle license plate

classification standard

Announcement batch: 275 Release date: 20150812
product ID: ZKLD84WP04S  Directory number: (Seventeen)74
Chinese brand: CLW GROUP TRUCK English brand:
Announcement type: CLW5060ZYSN4 Exempt from: yes
Enterprise name: CLW GROUP TRUCK fuel: no
Business address: The southern suburbs of Hubei Province, Suizhou city Zengdou District Chengli Automobile Industry Park environmental protection: no
Inspection instructions
Exemption: no Check the inspection period:
Announcement status
Announcement status: effective Effective date of announcement: 20150812
Announcement state description: change change(extend)Record:
Main technical parameters
Outline dimension: 6470,6320*2050*2570(mm)   Cargo compartment size: * *(mm)
Total mass: 6490(Kg)  Load quality utilization factor: 0
curb weight: 4850(Kg)  Rated load quality: 1510,1445(Kg)
Trailer quality: (kg) Semitrailer saddle:
Cab:
Front passenger: 2,3(people)
Rated capacity: (people) Anti lock braking system: nothing
Approach angle/Departure angle: 25/12,25/14(DEG) The front suspension/Rear overhang: 1050/2112,1050/1962(mm)
Axle load: 2400/4090 Wheelbase: 3308(mm)
Axis number: 2 Maximum speed: 95(km/h)
Oil consumption: 14.51,15.15,15.92,14.94 Spring sheet number: 8/9+3
Tyre number: 6 Tire specifications: 7.00-16LT 12PR,7.00R16LT 12PR
Front track: 1588  Rear wheel: 1485
Brake front:
After braking:
Before system operation:
After the operation of the system:
Steering form: Steering wheel Starting method:
drive system:
Oil consumption(L/100Km): 14.51,15.15,15.92,14.94
VinVehicle identification code: LNYAEDA2X x x x x x x x x x x x
LNYAEFA2X x x x x x x x x x x x
Laws and regulations
Engine parameters
Engine Engine production enterprise displacement(ml) power(kw)
YN27CRD1
CY4102-CE4F
4B2-95C40
YZ4DH1-40
Kunming Yunnei Limited by Share Ltd
Dongfeng Chaoyang Diesel Power Co. Ltd.
Anhui quanchai power Limited by Share Ltd
Weichai Power Yangzhou Diesel Engine Co. Ltd.
2672
3856
2545
2540
70
73
70
70
Vehicle fuel parameters
Fuel type: diesel oil Based on standard:
Chassis emission standard: GB17691-2005China IV,GB3847-2005
Other
Optional concave plane box style;The back flip style optional garbage bucket device. With no turnover mechanism,When the car no optional turnover mechanism of6320mm,The corresponding rear overhangfor1962mm,Corresponding departure angle is14Deg. With the optional chassis cab. The number of drivers in the cab is2The quality of the corresponding rated load(kg)by1510,The number of drivers in the cab is3The quality of the corresponding rated load(kg)by1445. Protective material:Q235Acarbon steel,Connection mode:The left and right sides are protected by welding connection,Rear protection is replaced by special equipment.
Reflective marking parameters
Marking enterprise: CLW GROUP TRUCK Logo mark: CLW GROUP TRUCK
Identification model: TM1200-1,HW1400
NJ1061DBFT4Chassis parameters
Yuejin truck chassis|Yuejin brandNJ1061DBFT4Truck chassisDetailed parameters
Enterprise name: Nanjing Automobile Group
Chassis Model: NJ1061DBFT4 Chassis class: Two
Product name: Truck chassis Product trademark: Yuejin brand
Zip code: 210061 Directory number: 44
Specifications: long:5827,5882  wide:1890  high:2205
Fuel type: diesel oil Based on standard: GB17691-2005China IV,GB3847-2005
Steering form: Steering wheel
Axis number: 2 Wheelbase: 3308
Spring sheet number: 8/9+3 Tyre number: 6
Tire specifications: 7.00-16LT 12PR,7.00R16LT 12PR Tread: Front track 1588  Rear wheel 1485
Total mass: 6490
curb weight: 2100 Trailer quality:
Semitrailer saddle:
Front passenger: 2,3
Close to the left corner: 25/16 Front suspension rear suspension: 1050/1469,1105/1469
Maximum speed: 95,80
picture:
Yuejin truck chassis|Yuejin brandNJ1061DBFT4Truck chassisEngine detail parameters
Engine model Engine production enterprise displacement(ML) power(ML)
YN27CRD1
CY4102-CE4F
4B2-95C40
YZ4DH1-40
Kunming Yunnei Limited by Share Ltd
Dongfeng Chaoyang Diesel Power Co. Ltd.
Anhui quanchai power Limited by Share Ltd
Weichai Power Yangzhou Diesel Engine Co. Ltd.
2672
3856
2545
2540
70
73
70
70
Identification code: LNYAEDA2X x x x x x x x x x x x LNYAEFA2X x x x x x x x x x x x
Other: 1.Optional cab front wall decoration board, grille, front bumper, door lamps, and the appearance of another optional rear combination lamp;2.Optional row half cab(Attached photo);3.Optional front disc brake and speed limiting device,ABSAuxiliary braking device;4.ABSModel for:APG3550500A6,Manufacturer for:Zhejiang Asia Pacific Mechanical and electrical Limited by Share Ltd;5.The optional speed limiting device when the speed limit80km/h;6.Optional cab in front muffler assembly;7.YN27CRD1,CY4102-CE4F,4B2-95C40,YZ4DH1-40The maximum net power of the engine is:65kW,70kW,68kW,67kW;8.The front suspension(mm)X Length(mm):1050*5827,1105*5882.
