Model No.: CLW5070ZZZ4
Brand: CLW GROUP TRUCK
Packaging: waxed
Productivity: 120 sets per week
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 12000 Sets per year
Certificate: CCC ISO
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP,DAF
Vehicle Features:
1. DONGFENG high quality chassis, 4X2 drive type, LHD/RHD
2. 130HP diesel engine, Euro 4 emission standard
3. Self loading and unloading garbage, Rear discharge. No secondary pollution.
4. CCC ISO BV approved, accept customization service.
Production enterprise information | |||

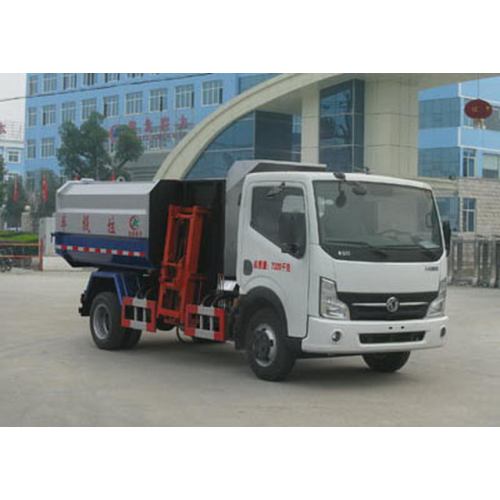

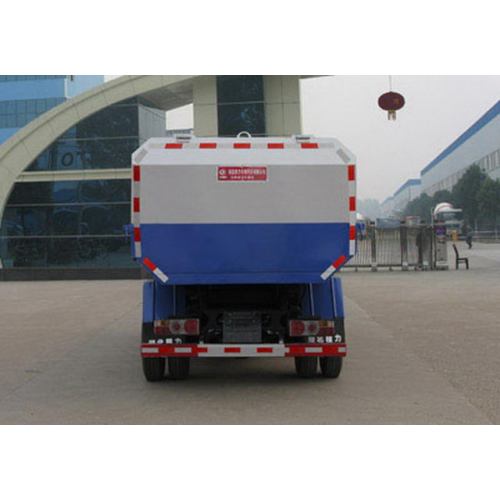

Vehicle name: | Dongfeng Duolika 6CBM Hydraulic Lifter Garbage truck | Vehicle type: | Special vehicleLaws and regulations |
Manufacturing place: | China | Type of licence: | The vehicle license plate classification standard |
Announcement batch: | 275 | Release date: | 20150812 |
product ID: | ZK1D34WP05X | Directory number: | (Seventeen)74 |
Chinese brand: | CLW GROUP TRUCK | English brand: | |
Announcement type: | CLW5070ZZZ4 | Exempt from: | yes |
Enterprise name: | CLW GROUP TRUCK | fuel: | no |
Business address: | The southern suburbs of Hubei Province, Suizhou city Zengdou District Chengli Automobile Industry Park | environmental protection: | no |
Inspection instructions | |||
Exemption: | no | Check the inspection period: | |
Announcement status | |||
Announcement status: | effective | Effective date of announcement: | 20150812 |
Announcement state description: | change | change(extend)Record: | |
Main technical parameters | |||
Outline dimension: | 5500*2000*2400(mm) | Cargo compartment size: | * *(mm) |
Total mass: | 7320(Kg) | Load quality utilization factor: | 0 |
curb weight: | 3625(Kg) | Rated load quality: | 3500(Kg) |
Trailer quality: | (kg) | Semitrailer saddle: | |
Cab: | | Front passenger: | 3(people) |
Rated capacity: | (people) | Anti lock braking system: | nothing |
Approach angle/Departure angle: | 21/15(DEG) | The front suspension/Rear overhang: | 1053/1097(mm) |
Axle load: | 2930/4390 | Wheelbase: | 3350,3308(mm) |
Axis number: | 2 | Maximum speed: | 95(km/h) |
Oil consumption: | 17.7,17.6 | Spring sheet number: | 6/5+5 |
Tyre number: | 6 | Tire specifications: | 7.00-16 14PR,7.00R16 14PR,7.50-16 14PR,7.50R16 14PR |
Front track: | 1598,1562,1608 | Rear wheel: | 1458,1586,1486 |
Brake front: | | After braking: | |
Before system operation: | | After the operation of the system: | |
Steering form: | Steering wheel | Starting method: | |
drive system: | | Oil consumption(L/100Km): | 17.7,17.6 |
VinVehicle identification code: | LGDCP91GX x x x x x x x x x x xLaws and regulations | ||
Engine parameters | |||
Engine | Engine production enterprise | displacement(ml) | power(kw) |
ZD30D13-4N D28D11-4DA | Dongfeng light engine Co., Ltd. Dongfeng light engine Co., Ltd. | 2953 2771 | 96 85 |
Vehicle fuel parameters | |||
Fuel type: | diesel oil | Based on standard: | |
Chassis emission standard: | GB3847-2005,GB17691-2005China IV | ||
Other | |||

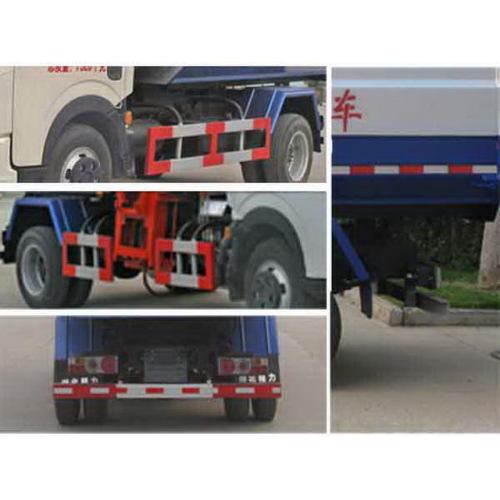

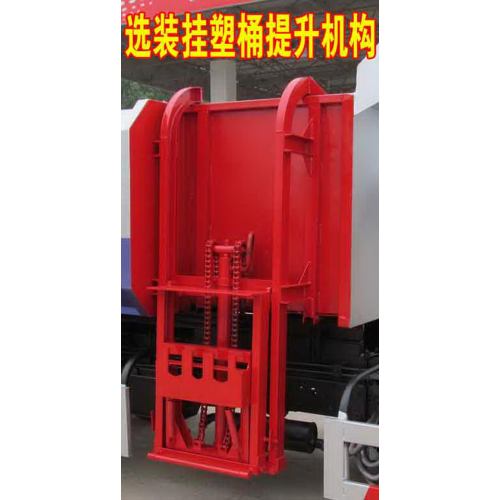

Optional hanging plastic barrel lifting device. Dump mode:Rear dump. Protective material:Q235Acarbon steel,Connection mode:The left and right sides and the rear lower part are protected by welding connection,Rear section size(mm):100*50,Rear protection height(mm):400. | |||
Reflective marking parameters | |||
Marking enterprise: | CLW GROUP TRUCK | Logo mark: | CLW GROUP TRUCK |
Identification model: | TM1200-1,HW1400 |
DFA1070SJ41D6Chassis parameters |
Dongfeng truck chassis|Dongfeng brandDFA1070SJ41D6Truck chassisDetailed parameters | |||
Enterprise name: | Dongfeng Automobile Limited by Share Ltd | ||
Chassis Model: | DFA1070SJ41D6 | Chassis class: | Two |
Product name: | Truck chassis | Product trademark: | Dongfeng brand |
Zip code: | 441004 | Directory number: | 3 |
Specifications: | long:5940 wide:1882 high:2225 | ||
Fuel type: | diesel oil | Based on standard: | GB3847-2005,GB17691-2005China IV |
Steering form: | Steering wheel | ||
Axis number: | 2 | Wheelbase: | 3350,3308 |
Spring sheet number: | 6/5+5 | Tyre number: | 6 |
Tire specifications: | 7.00-16 14PR,7.00R16 14PR,7.50-16 14PR,7.50R16 14PR | Tread: | Front track 1598,1562,1608 Rear wheel 1458,1586,1486 |
Total mass: | 7320 | ||
curb weight: | 2350 | Trailer quality: | |
Semitrailer saddle: | | Front passenger: | 3 |
Close to the left corner: | 22/19 | Front suspension rear suspension: | 1053/1537,1053/1579 |
Maximum speed: | 105,80 | ||
picture: | |
Dongfeng truck chassis|Dongfeng brandDFA1070SJ41D6Truck chassisEngine detail parameters | |||
Engine model | Engine production enterprise | displacement(ML) | power(ML) |
ZD30D13-4N D28D11-4DA | Dongfeng light engine Co., Ltd. Dongfeng light engine Co., Ltd. | 2953 2771 | 96 85 |
Identification code: | LGDCP91GX x x x x x x x x x x x | ||
Other: | As a modification of dangerous goods vehicles with the chassis speed limiting device(Speed limit80km/h).ABSSystem manufacturer/Model:Zhejiang Asia Pacific Mechanical and electrical Limited by Share Ltd/3550010-H01111,The optional front exhaust pipe.ZD30D13-4NEngine maximum net power91kw.D28D11-4DAEngine maximum net power80kw. |
Product Categories : Garbage Truck
