Model No.: CLW5121ZBST4
Brand: CLW GROUP TRUCK
Packaging: waxed
Productivity: 120 sets per week
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 12000 Sets per year
Certificate: CCC ISO
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union,Cash
Incoterm: FOB,CFR,CIF,FCA,CPT,CIP,DAF
Vehicle Features:
1. DONGFENG high quality chassis, 4X2 drive type, LHD/RHD
2. Guangxi Yuchai /Dongfeng Cummins 180hp engine, Euro 3 emission standard
3. Easy operation, high working efficiency
4. CCC ISO BV approved, accept customization service.
Production enterprise information | |||

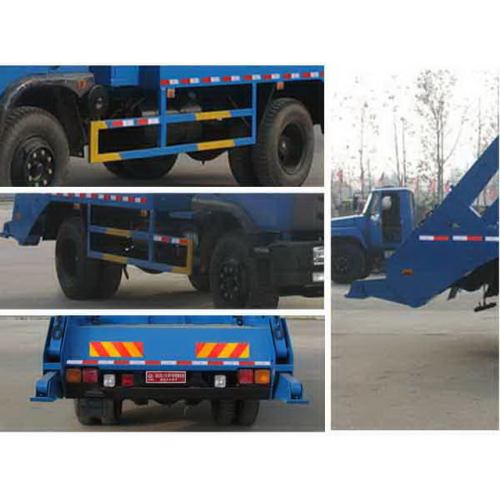

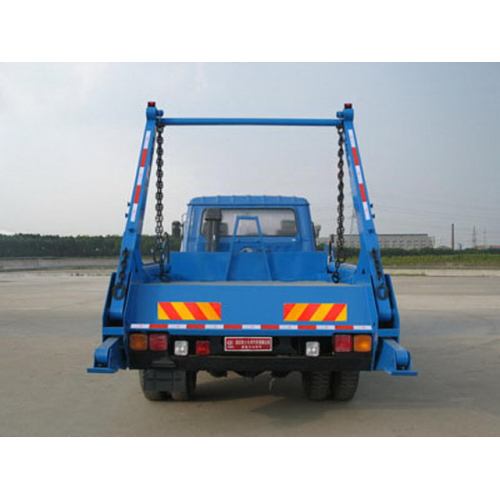

Vehicle name: | Dongfeng 8CBM Swing Arm Container Garbage truck | Vehicle type: | Special vehicleLaws and regulations |
Manufacturing place: | China | Type of licence: | The vehicle license plate classification standard |
Announcement batch: | 275 | Release date: | 20150812 |
product ID: | ZK1D74WP06V | Directory number: | (Seventeen)74 |
Chinese brand: | CLW GROUP TRUCK | English brand: | |
Announcement type: | CLW5121ZBST4 | Exempt from: | yes |
Enterprise name: | CLW GROUP TRUCK | fuel: | no |
Business address: | The southern suburbs of Hubei Province, Suizhou city Zengdou District Chengli Automobile Industry Park | environmental protection: | no |
Inspection instructions | |||
Exemption: | no | Check the inspection period: | |
Announcement status | |||
Announcement status: | effective | Effective date of announcement: | 20150812 |
Announcement state description: | change | change(extend)Record: | 247 |
Main technical parameters | |||
Outline dimension: | 7070,7220,7370*2470*3330(mm) | Cargo compartment size: | * *(mm) |
Total mass: | 12490(Kg) | Load quality utilization factor: | 0 |
curb weight: | 6295(Kg) | Rated load quality: | 6000(Kg) |
Trailer quality: | (kg) | Semitrailer saddle: | |
Cab: | | Front passenger: | 3(people) |
Rated capacity: | (people) | Anti lock braking system: | Yes |
Approach angle/Departure angle: | 30/21(DEG) | The front suspension/Rear overhang: | 1250/2170(mm) |
Axle load: | 4990/7500 | Wheelbase: | 3650,3800,3950,4100,4500(mm) |
Axis number: | 2 | Maximum speed: | 90(km/h) |
Oil consumption: | 24.3,24.3,24.2,23.9,24.0,23.9,23.9,23.9 | Spring sheet number: | 9/11+8,8/10+8,8/11+8,9/10+8 |
Tyre number: | 6 | Tire specifications: | 9.00-20 16PR,9.00R20 16PR,10.00-20 14PR,10.00R20 14PR |
Front track: | 1810,1900,1750 | Rear wheel: | 1800,1750,1860 |
Brake front: | | After braking: | |
Before system operation: | | After the operation of the system: | |
Steering form: | Steering wheel | Starting method: | |
drive system: | | Oil consumption(L/100Km): | 24.3,24.3,24.2,23.9,24.0,23.9,23.9,23.9 |
VinVehicle identification code: | LGHXCG1GX x x x x x x x x x x x LGHXCG1HX x x x x x x x x x x x LGHXCD1GX x x x x x x x x x x x LGHXCD1HX x x x x x x x x x x x LGHXCD1JX x x x x x x x x x x x LGHXCD1LX x x x x x x x x x x x LGHXCG1JX x x x x x x x x x x x LGHXCG1LX x x x x x x x x x x xLaws and regulations | ||
Engine parameters | |||
Engine | Engine production enterprise | displacement(ml) | power(kw) |
YC6J180-42 ISDe180 40 ISB3.9-160E41A ISB170 40 YC6J160-46 YC4E160-42 YC4EG180-40 4DX23-140E4 YCD4J2S-150 | Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd FAW Automobile Co., Ltd. Wuxi Diesel Engine Factory Guangxi Yuchai Power Machinery Co Ltd | 6500 4500 3900 5900 6494 4260 4730 3857 4329 | 132 132 118 125 118 118 132 105 110 |
Vehicle fuel parameters | |||
Fuel type: | diesel oil | Based on standard: | |
Chassis emission standard: | GB17691-2005China IV,GB3847-2005 | ||
Other | |||
Total length of the vehicle7070mmWhen the corresponding wheelbase3650mm,Vehicle length7220mmWhen the corresponding wheelbase3800mm,Vehicle length7370mmWhen the corresponding wheelbase3950mm. Protective material:Q235Acarbon steel,Connection mode:The left and right sides and the rear lower part are protected by welding connection,Rear section size(mm):150*50,Rear protection height(mm):500. With the optional chassis and the front bumper lamp and door form. The vehicle should be loaded on the recorder.ABS,Model for3631010-C2000,Manufacturer of Dongfeng electronic Polytron Technologies Inc brake system company. | |||
Reflective marking parameters | |||
Marking enterprise: | CLW GROUP TRUCK | Logo mark: | CLW GROUP TRUCK |
Identification model: | TM1200-1,HW1400 |

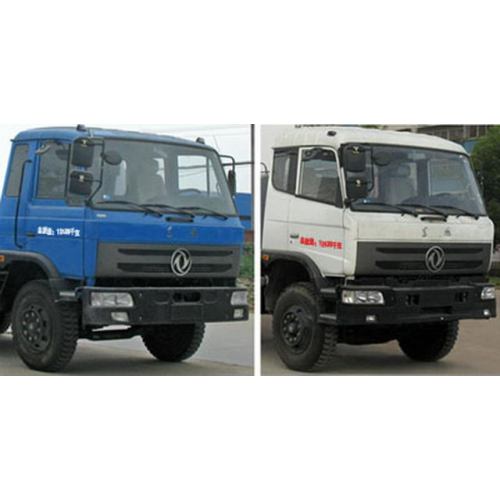

EQ1128GLJChassis parameters |
Dongfeng truck chassis|Dongfeng brandEQ1128GLJTruck chassisDetailed parameters | |||
Enterprise name: | Dongfeng Motor Corporation | ||
Chassis Model: | EQ1128GLJ | Chassis class: | Two |
Product name: | Truck chassis | Product trademark: | Dongfeng brand |
Zip code: | 430056 | Directory number: | 3 |
Specifications: | long:6000,6500,7200 wide:2462 high:2740,3120 | ||
Fuel type: | diesel oil | Based on standard: | GB17691-2005China IV,GB3847-2005 |
Steering form: | Steering wheel | ||
Axis number: | 2 | Wheelbase: | 3650,3800,3950,4100,4500 |
Spring sheet number: | 9/11+8,8/10+8,8/11+8,9/10+8 | Tyre number: | 6 |
Tire specifications: | 9.00-20 16PR,9.00R20 16PR,10.00-20 14PR,10.00R20 14PR | Tread: | Front track 1810,1900,1750 Rear wheel 1800,1750,1860 |
Total mass: | 12490 | ||
curb weight: | 3650 | Trailer quality: | |
Semitrailer saddle: | | Front passenger: | 3,2 |
Close to the left corner: | 30/31,30/29.5,30/26 | Front suspension rear suspension: | 1250/1100,1250/1450,1250/2000,1250/1850, 1250/1450,1450/900,1450/1250,1450/1800, 1450/1650,1450/1250 |
Maximum speed: | 95,80 | ||
picture: | |
Dongfeng truck chassis|Dongfeng brandEQ1128GLJTruck chassisEngine detail parameters | |||
Engine model | Engine production enterprise | displacement(ML) | power(ML) |
YC6J180-42 ISDe180 40 ISB3.9-160E41A ISB170 40 YC6J160-46 YC4E160-42 YC4EG180-40 4DX23-140E4 YCD4J2S-150 | Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd FAW Automobile Co., Ltd. Wuxi Diesel Engine Factory Guangxi Yuchai Power Machinery Co Ltd | 6500 4500 3900 5900 6494 4260 4730 3857 4329 | 132 132 118 125 118 118 132 105 110 |
Identification code: | LGHXCG1GX x x x x x x x x x x x LGHXCG1HX x x x x x x x x x x x LGHXCD1GX x x x x x x x x x x x LGHXCD1HX x x x x x x x x x x x LGHXCD1JX x x x x x x x x x x x LGHXCD1LX x x x x x x x x x x x LGHXCG1JX x x x x x x x x x x x LGHXCG1LX x x x x x x x x x x x | ||
Other: | 1.Optional door form/Bumper/Lamps and other new style,The front bumper and optional lamps;2.The optional front exhaust pipe;3.Net power:YC6J180-42by128kw,ISDe180 40by126.16kw,ISB3.9-160E41Aby114kw,ISB170 40by119kw,YC6J160-46by109kw,YC4E160-42by113kw,YC4EG180-40by127kw,4DX23-140E4by103W,YCD4J2S-150by103W;4.Foreign minister-Wheelbase-The front suspension/The corresponding relationship:6000-3650-1250/1100-1450/900,6500-3800-1250/1450-1450/1250,7200-3950-1250/2000-1450/1800,7200-4100-1250/1850-1450/1650,7200-4500-1250/1450-1450/1250.The corresponding relationship between front and rear track:1810,1900/1800;1750/1750,1860;5.Optional different wheelbase and dimensions caused by changes in quality parameters3%within,Can be ignored;6.The cab top dome is optional(Height as3120mm).7,The optional speed limiting device,Speed limit80km/h,Optional disc brake,pretendABS,Model for3631010-C2000,Manufacturer of Dongfeng electronic Polytron Technologies Inc brake system company. |
Product Categories : Garbage Truck
